Connecting the 3-Core Wire to Control Unit

This guide outlines how to properly connect the 3-Core Wire to your Oelo System Control Unit. This guide may be helpful during the installation stage, or for verifying your wiring connections.



Before continuing, make sure you have read the installation manual. It can be found here.

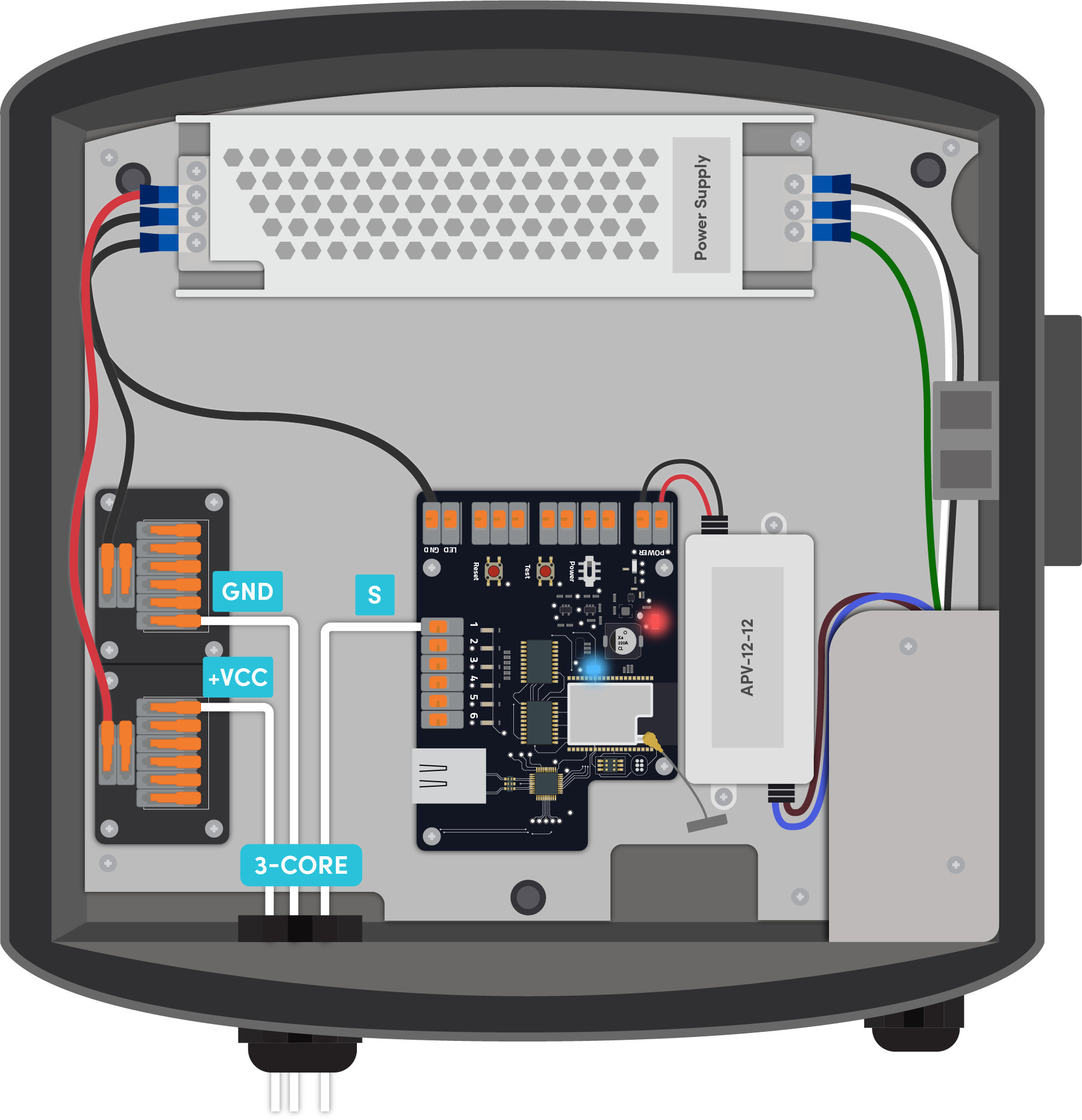

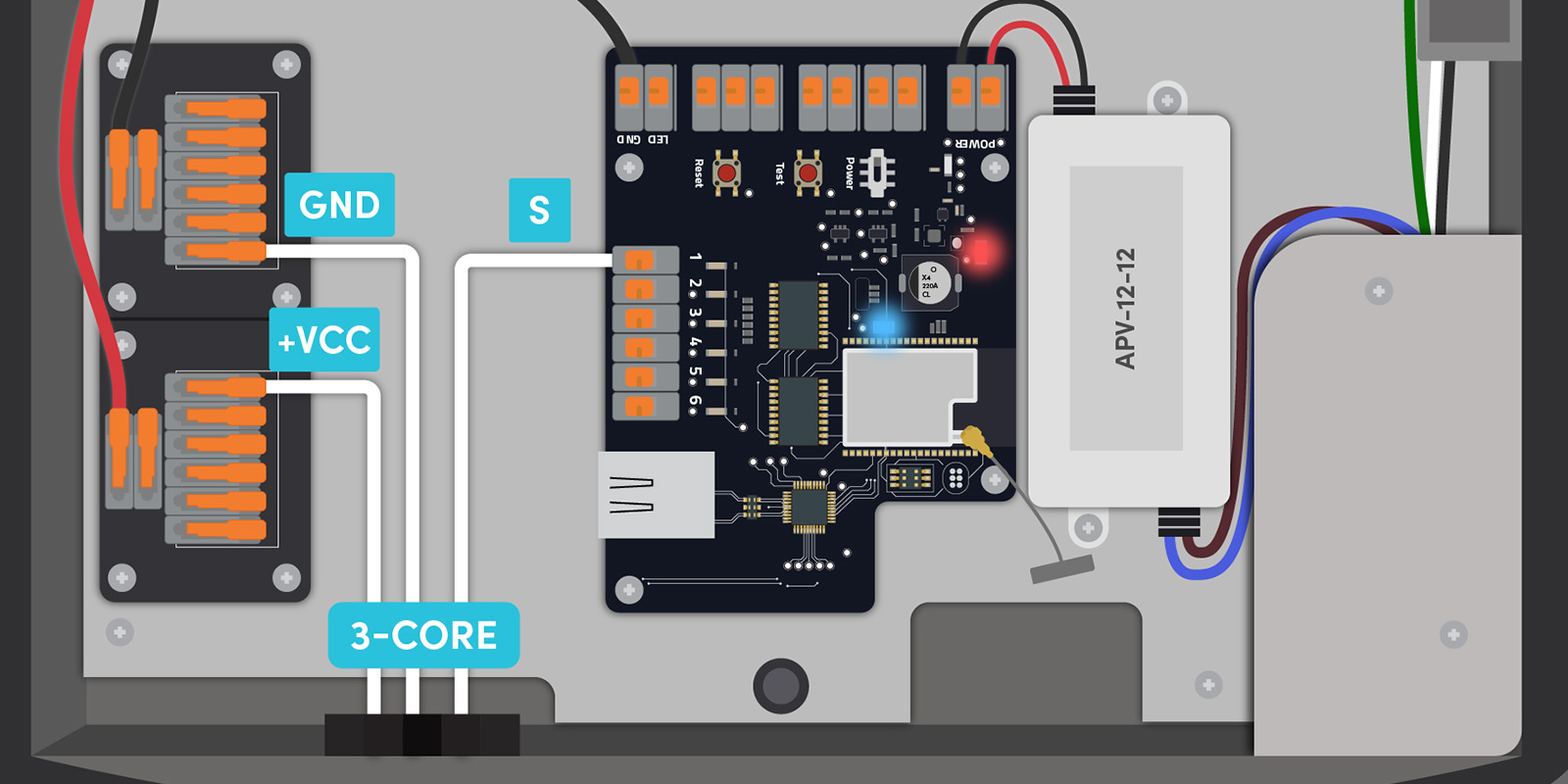

  1. Insert the GND 3-Core Wire to the Black Conductor. Clamp the Conductor down.
  2. Insert the +VCC 3-Core Wire to the Red Conductor. Clamp the Conductor down.
  3. Insert the S 3-Core Wire to the 1 Port. Press and hold down on the port head then insert the wire into the port. Additional S 3-Core Wires will use the next numerical numbered port (2, 3, 4, 5, 6).

Note: Make sure there is no wiring left exposed when the Conductors are closed.
